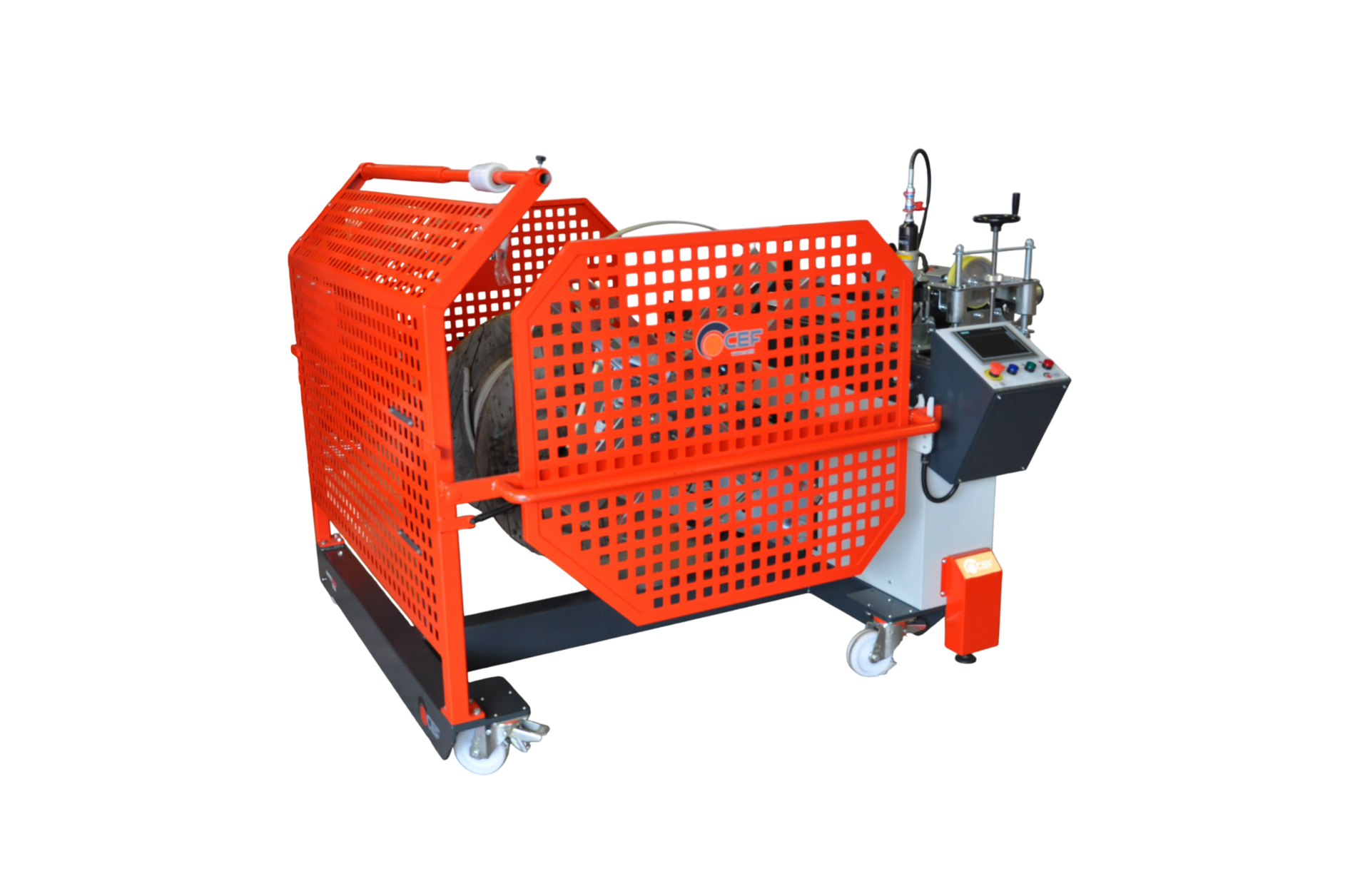

WIRE 1200Q13 – Drum Winder
A single machine designed to produce both coils and drums. Its versatility allows handling a wide range of cables, ropes and hoses. This solution enables a single operator to perform daily measuring operations in cable warehouses.
Technical Data Sheet
| Model | WIRE 1200Q13 |
| Code | 0800.1200Q13 |
| Dimensions (mm) | 2100x1515x2100 |
| Weight (Kg) | 560 |
DRUM
| Winding shaft diameter (mm) | 76 |
| Drums – Maximum diameter (mm) | 1250 |
| Drums – Minimum width (mm) | 400 |
| Drums – Maximum width (mm) | 750 |
| Drums – Max load (kg) | 1300 |
| Lifting | Manual |
DRIVE
| Speed (RPM) | 0/70 |
| Voltage | 220 |
| Power (kW) | 1,1 |
| Measuring Device | Supermetal code 0120 |
| Layering | Manual |
| Minimum cable diameter (mm) | 3 |
| Maximum cable diameter (mm) | 60 |
ELECTRICAL FEATURES:
- Power supply: 220 V-50 Hz (380 V for automatic layering);
- Speed adjustment via inverter and potentiometer, 0–70 RPM;
- 1.1 kW gear motor;
- Control panel with command buttons and indicator lights;
- Dual multifunction handles (coil side and drum side) for cable layering, start command and RPM adjustment.
COILING HEAD
WIRE 1001Q7 – WIRE 1200Q9 – WIRE 1200Q13 (same coiling head)
| Capacity (Kg) | 150 |
| External diameter (mm) | 960 |
| Min. core diameter (mm) | 325 |
| Max. core diameter (mm) | 500 |
| Min. core width (mm) | 120 |
| Maximum Core Width (mm) | 245 |
COILING HEAD FEATURES:
- Integrated rapid coiling head;
- Retractable levers for quick coil removal;
- Cylindrical core during winding and conical core during extraction;
- Installed on a shaft for small-sized drums.
WINDER FEATURES:
- Steel shaft with cones;
- Drum locking cone with a handle for fast tightening;
- Drum loading by inserting the shaft into the spool hole and moving the machine;
- Drum lifting with a manual hydraulic pump;
- Machine with 4 wheels, 2 of which swivel and have brakes;
- Protective guards compliant with CE standards.
MEASURING DEVICE FEATURES:
- Measuring device for round cables with diameters from 3 to 60 mm (tolerance +1-2%);
- Rubber-coated measuring wheel for better grip and enhanced accuracy;
- Mechanical meter counter with manual reset;
- Manual cable layering using guides and runners;
- Layering handle accessible from the machine sides, designed to meet safety standards;
- Wire 1200Q9 and Wire 1200Q13 models come with an integrated Supermetal measuring device code 120, for cables from 3 to 60 mm in diameter.
SMALL SHAFT
| Shaft (mm) | 30 |
| Reel – max diameter (mm) | 600 |
| Reel – Max Width (mm) | 400 |
| Max Weight (kg) | 150 |
