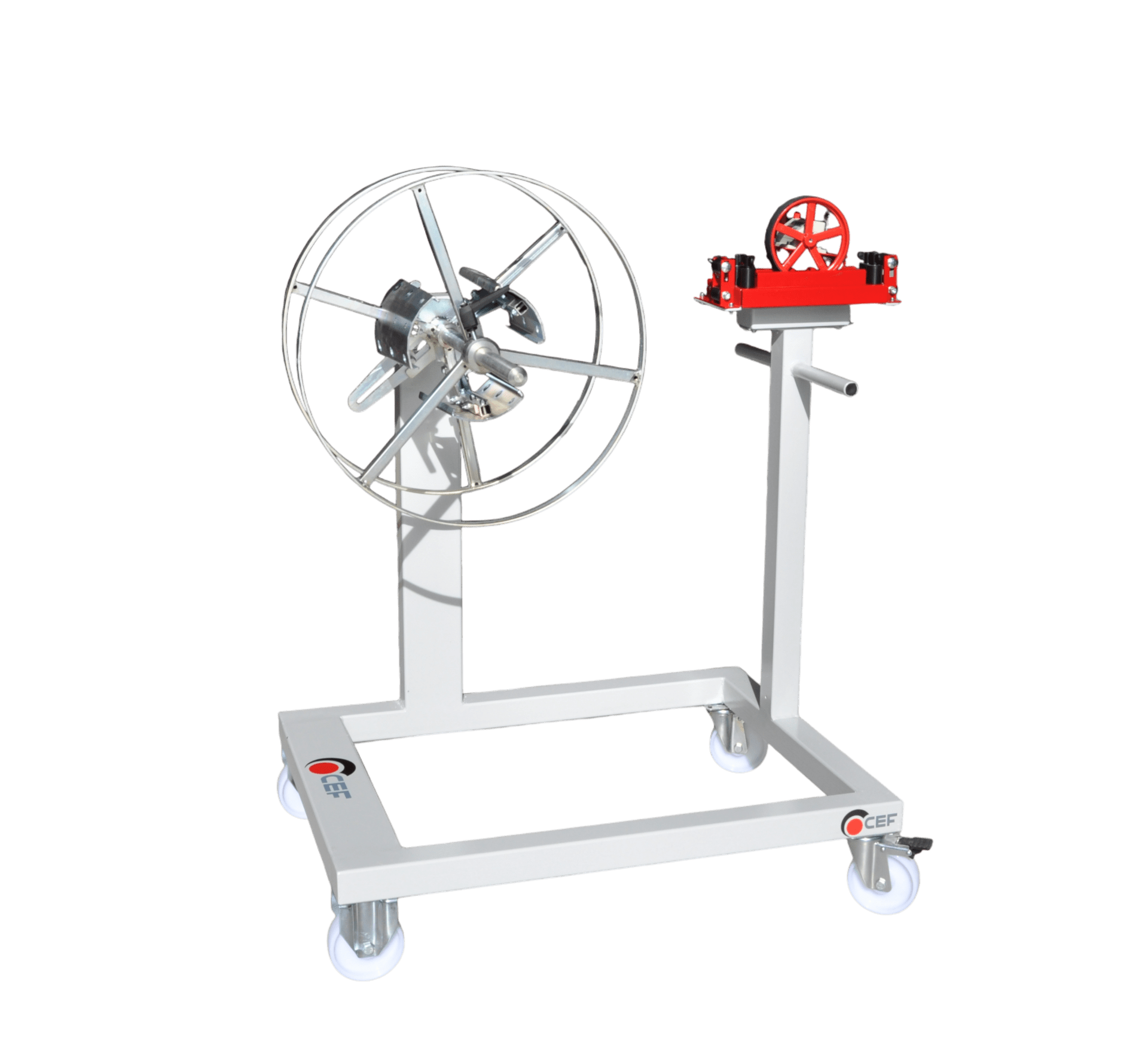

INTER 0420 – Coil Winder
Compact and cost-effective coil winder designed for fast coil production.
Developed to minimize space requirements and facilitate movement within cable warehouses.
Ideal for users seeking lightweight, practical and low price equipment.
FEATURES:
- Extractable wheel coiling head with conical core;
- Measuring device for round cables from 5 to 23 mm;
- Machine with 4 wheels, including 2 swivel wheels with brake.
DATA SHEET
| Model | 0420 |
| Dimensions (mm) | 1200x1400x935 |
| Weight (kg) | 85 |
| Winding | Manual |
| Layering | Not included |
| Measuring device | Code 0105 |
| Min. Cable Diameter (mm) | 5 |
| Max. Cable Diameter (mm) | 23 |
| Cutter | Not included |
COILING HEAD
COIL
| Load Capacity (kg) | 60 |
| Wheel Diameter (mm) | 600 |
| Minimum Core Diameter (mm) | 215 |
| Minimum Core Width (mm) | 460 |
| Maximum Core Width (mm) | 200 |
