Manual coiler/winding machine/unwinding machine INTERMATRIX

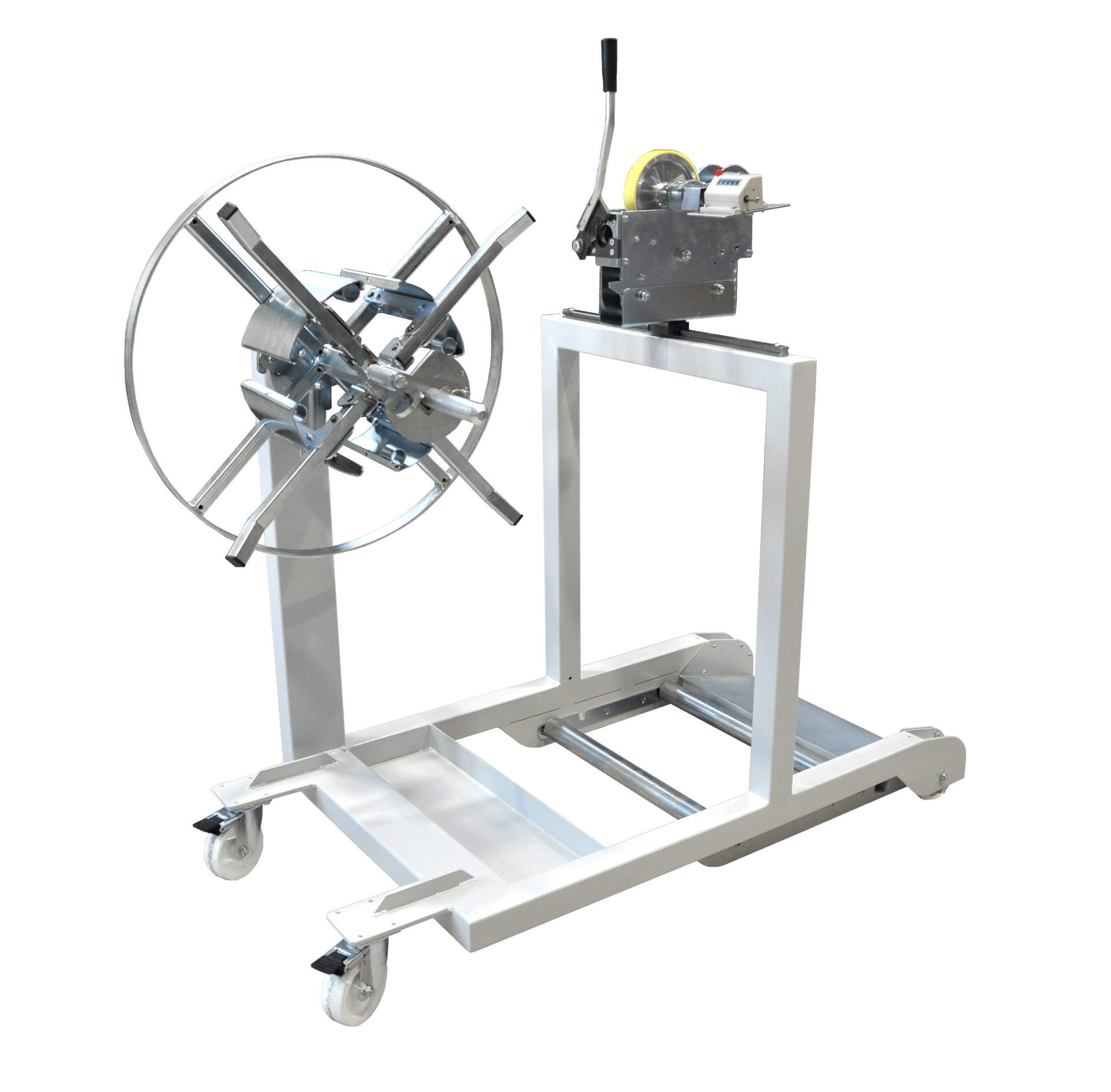

One single machine for assembling and winding coils and drums.
This machine has been designed with the precise aim of minimizing as much as possible the time needed to measure and wind cables on coils and spools from coils or spools. This extremely simple, robust and safe machine allows only one operator to carry out all the daily measurements in a cable warehouse. The machine is easy to handle and suitable to move along an electric cable storage rack.
SPOOL FEATURES
- Spool with retractable levers, to remove the coil easier
- Spool external diameter 700mm, core diameter 325mm
- Shaft with cones for small reels. Shaft diameter 30mm
FEATURES MEASUREMENT DEVICE METALMEDIUM 30
- Measurement device for electric cables with a diameter from 2 to 30mm (error margin + 1-2 %)
- Manual cutter for electric cables (Not for copper or steel)
- Mechanical counter with manual resetting button
- Manual cable layering, through HIWIN guides and runners
FEATURES UNCOILER ROLLER
- Uncoiler roller for drums up to 800mm of diameter and maximum width of 640mm. Drum loading with ramp
TECHNICAL CHARACTERISTICS
| Model | 0421 |
| Dimension (pxhxl) | 1650 x 1400 x 900 |
| Weight kg | 114 |
| Control | Manual |
| Layering | Manual |
| Measurement device | 110 |
| Cable Ø min. mm | 2 |
| Cable Ø max. mm | 30 |
| Cutting | Manual |
WINDING SPOOL
| Carrying Capacity KG | 150 |
| Wheel diameter – mm | 700 |
| Core Ø Min. mm | 325 |
| Max. Core Width MM | 190 |
REEL
| Shaft diameter Ø mm | 30 |
| Width Min. MM | 85 |
| Width Max. MM | 495 |
| Weight Max. KG | 150 |
UNWINDING ROLLING SYSTEM DRUM
| Carrying Capacity kg | 400 |
| Max drum diameter | 800 |
| Width Max. MM | 640 |
SPOOL (OPTIONAL)
| Carrying Capacity | 70 |
| Spool diameter Ø mm. | 550 |
| Min. core diameter mm | 50 |
| Max core diameter mm | 340 |
